Google Drive OAuth Integration Guide

This guide explains how to set up a Google OAuth 2.0 integration for AINexLayer to connect your Google Drive.

Step 1: Accessing the Google Cloud Console

1. Navigate to Google Cloud Console
2. Select an existing project or create a new one

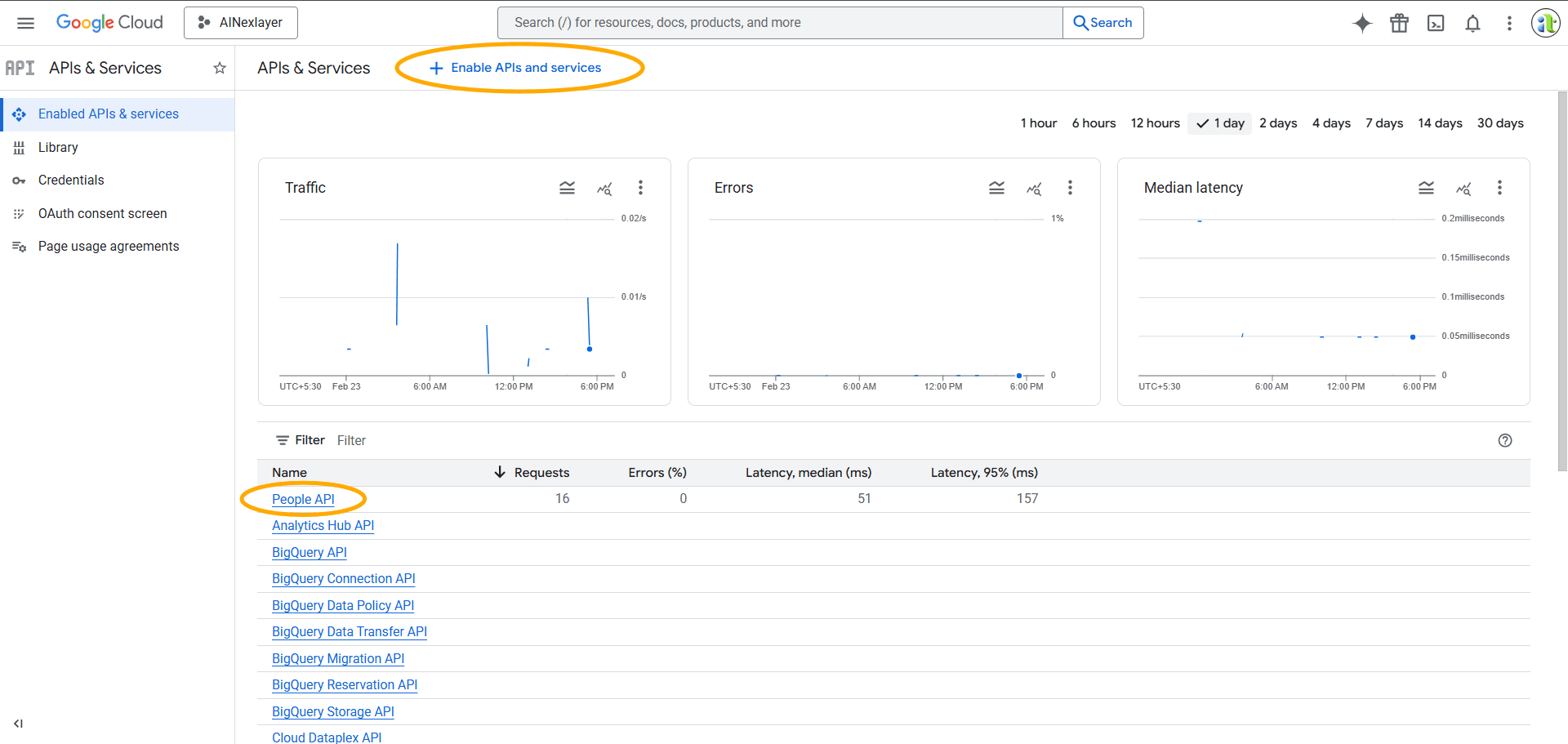

Step 2: Enabling Required APIs

1. Go to APIs & Services > Library
2. Search for and enable the following APIs:
   • People API (required for Google OAuth)
   • Google Drive API (required for Drive connector)

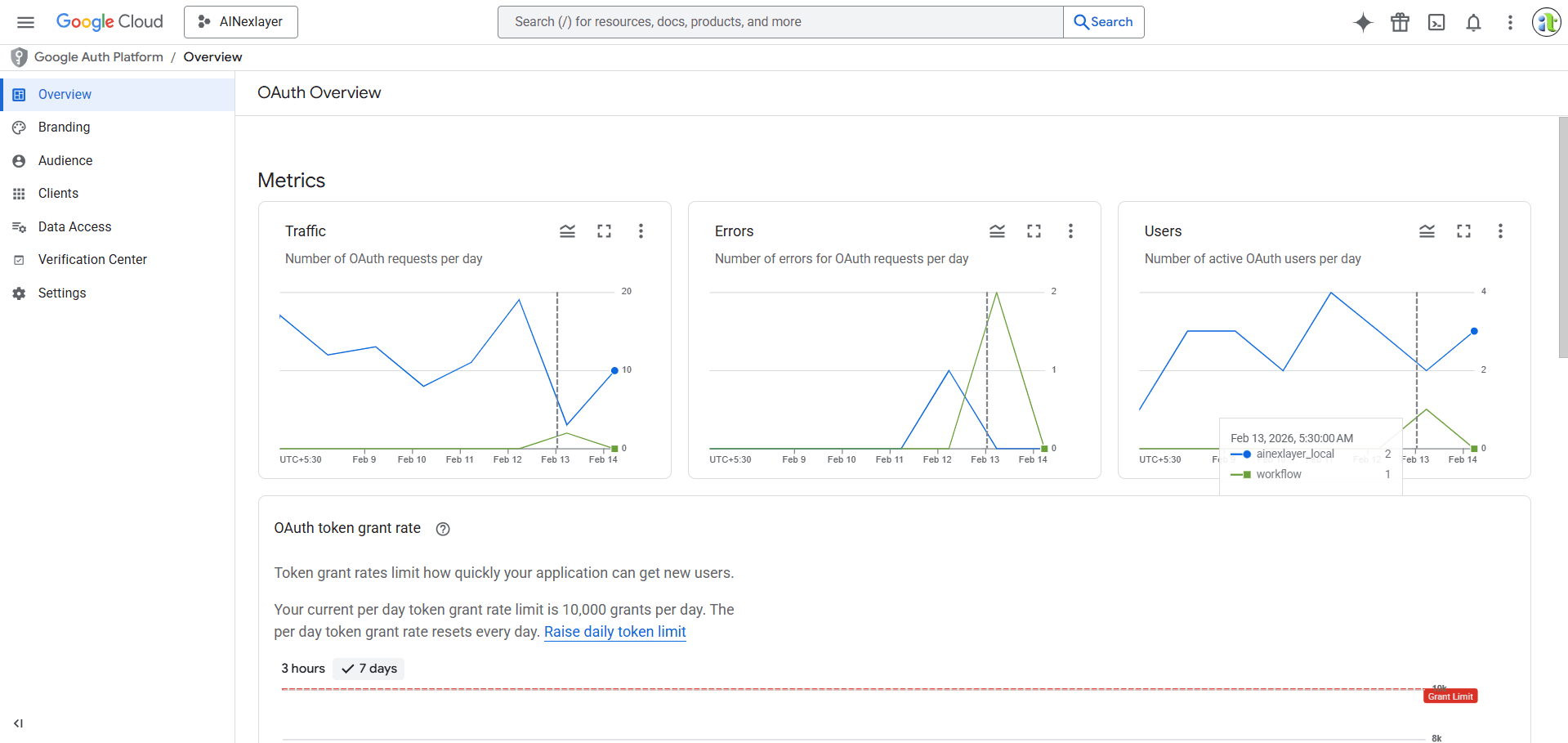

Step 3: Configuring OAuth Consent Screen

1. Go to APIs & Services > OAuth consent screen
2. Select External user type (or Internal if using Google Workspace)
3. Fill in the required information:
   • App name: AINexLayer
   • User support email: Your email address
   • Developer contact information: Your email address
4. Click Save and Continue

Adding Scopes

1. Click Add or Remove Scopes
2. Add the following scopes:
   • https://www.googleapis.com/auth/drive - Full access to Google Drive (read, create, and trash files)
   • https://www.googleapis.com/auth/userinfo.email - View user email address
   • https://www.googleapis.com/auth/userinfo.profile - View user profile info
   • openid - OpenID Connect authentication
3. Click Update and then Save and Continue

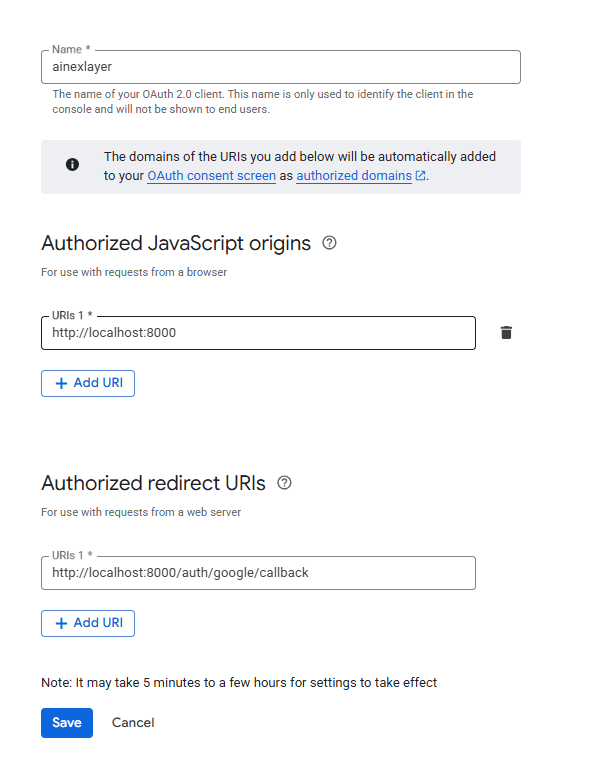

Step 4: Creating OAuth Client ID

1. Go to APIs & Services > Credentials
2. Click Create Credentials > OAuth client ID
3. Select Web application as the application type
4. Enter Name: AINexLayer
5. Under Authorized redirect URIs, add:

   http://localhost:8000/api/v1/auth/google/drive/connector/callback

6. Click Create

Step 5: Obtaining OAuth Credentials

1. After creating the OAuth client, you'll see a dialog with your credentials
2. Copy your Client ID and Client Secret

Deploying AINexLayer with Google Drive Connector

Add the Google OAuth credentials to your .env file (created during Docker installation):

GOOGLE_OAUTH_CLIENT_ID=your_google_client_id
GOOGLE_OAUTH_CLIENT_SECRET=your_google_client_secret
GOOGLE_DRIVE_REDIRECT_URI=http://localhost:8000/api/v1/auth/google/drive/connector/callback

Then restart the services:

docker compose up -d
