Microsoft Teams OAuth Connection Guide
This guide explains how to set up a Microsoft Teams OAuth integration for AINexLayer using Azure App Registration.

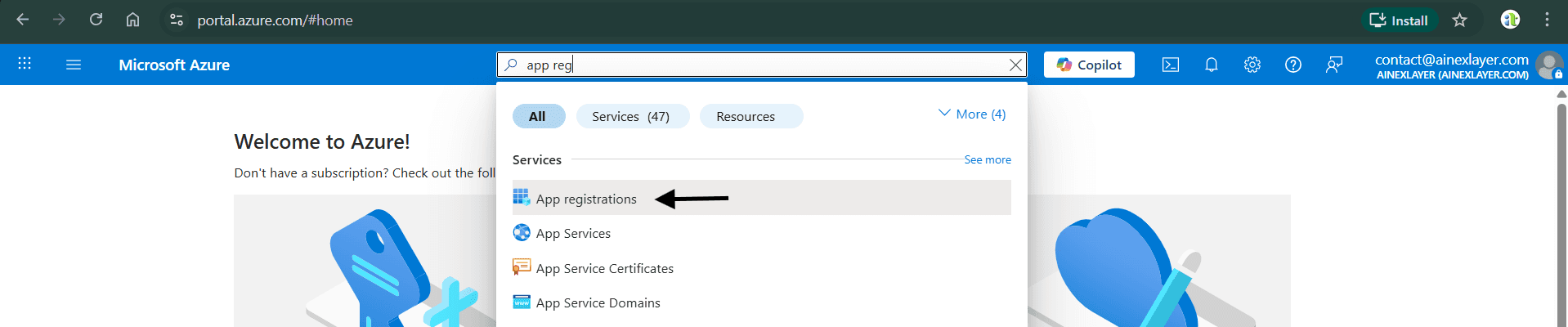

Step 1: Accessing Azure App Registrations
- Navigate to portal.azure.com
- In the search bar, type "app reg"
- Select "App registrations" from the Services results

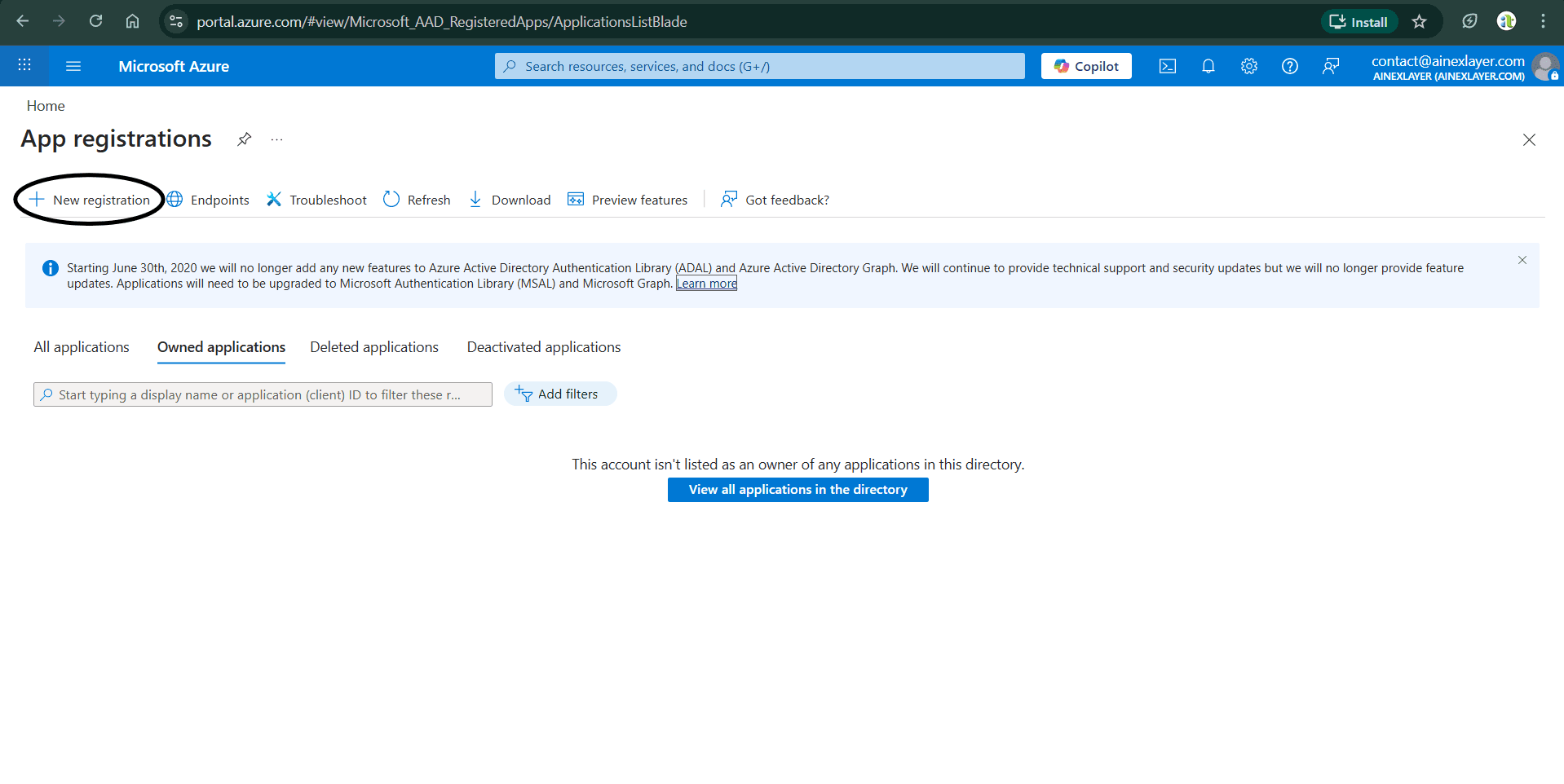

Step 2: Creating a New Registration
- On the App registrations page, click "+ New registration"

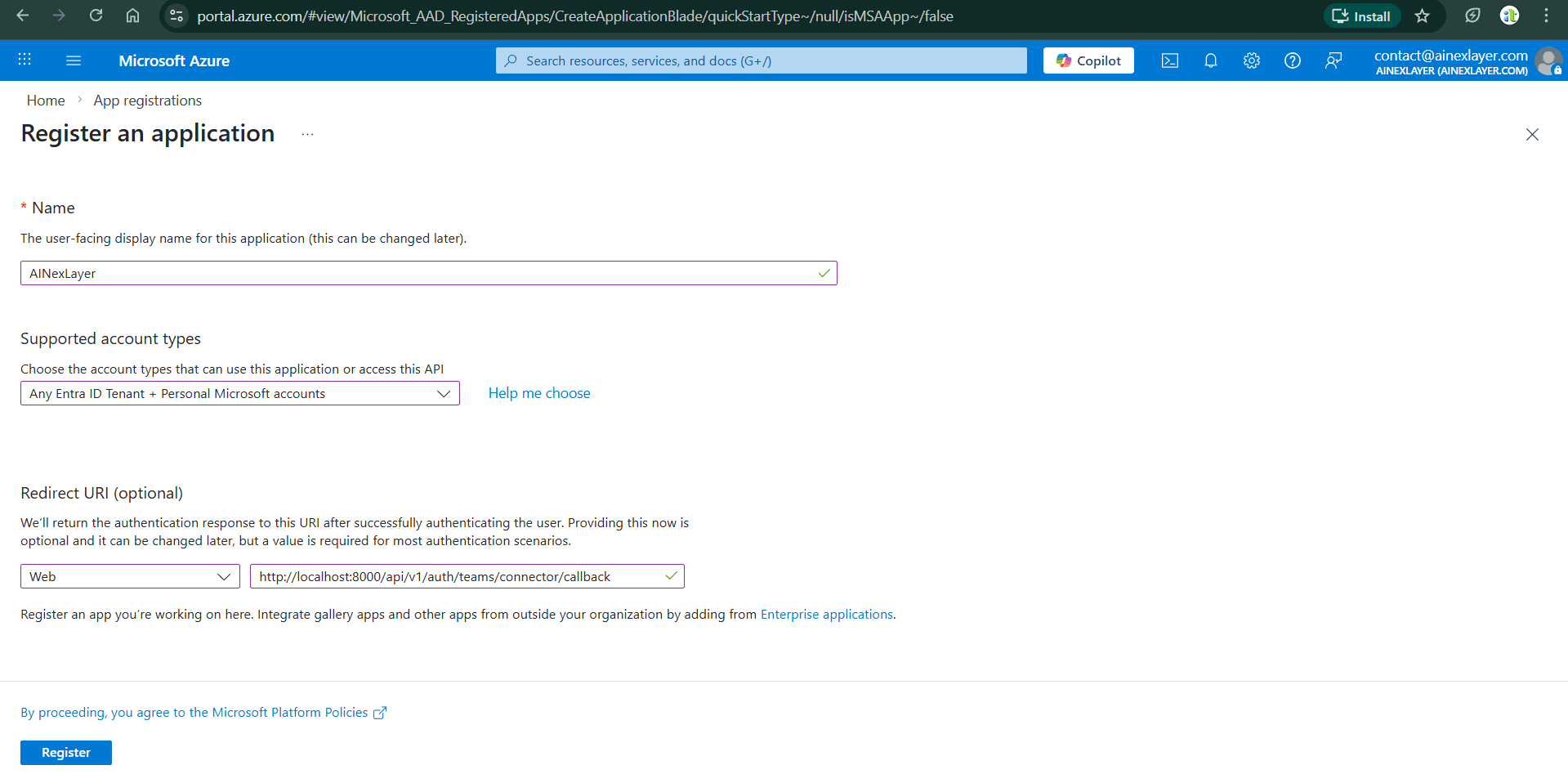

Step 3: Registering the Application
Complete the application details:
| Field | Value |
|---|---|
| Name | AINexLayer |
| Supported account types | Select "Accounts in any organizational directory (Any Microsoft Entra ID tenant - Multitenant) and personal Microsoft accounts" |
| Redirect URI | Platform: Web, URI: http://localhost:8000/api/v1/auth/teams/connector/callback |
Click "Register"

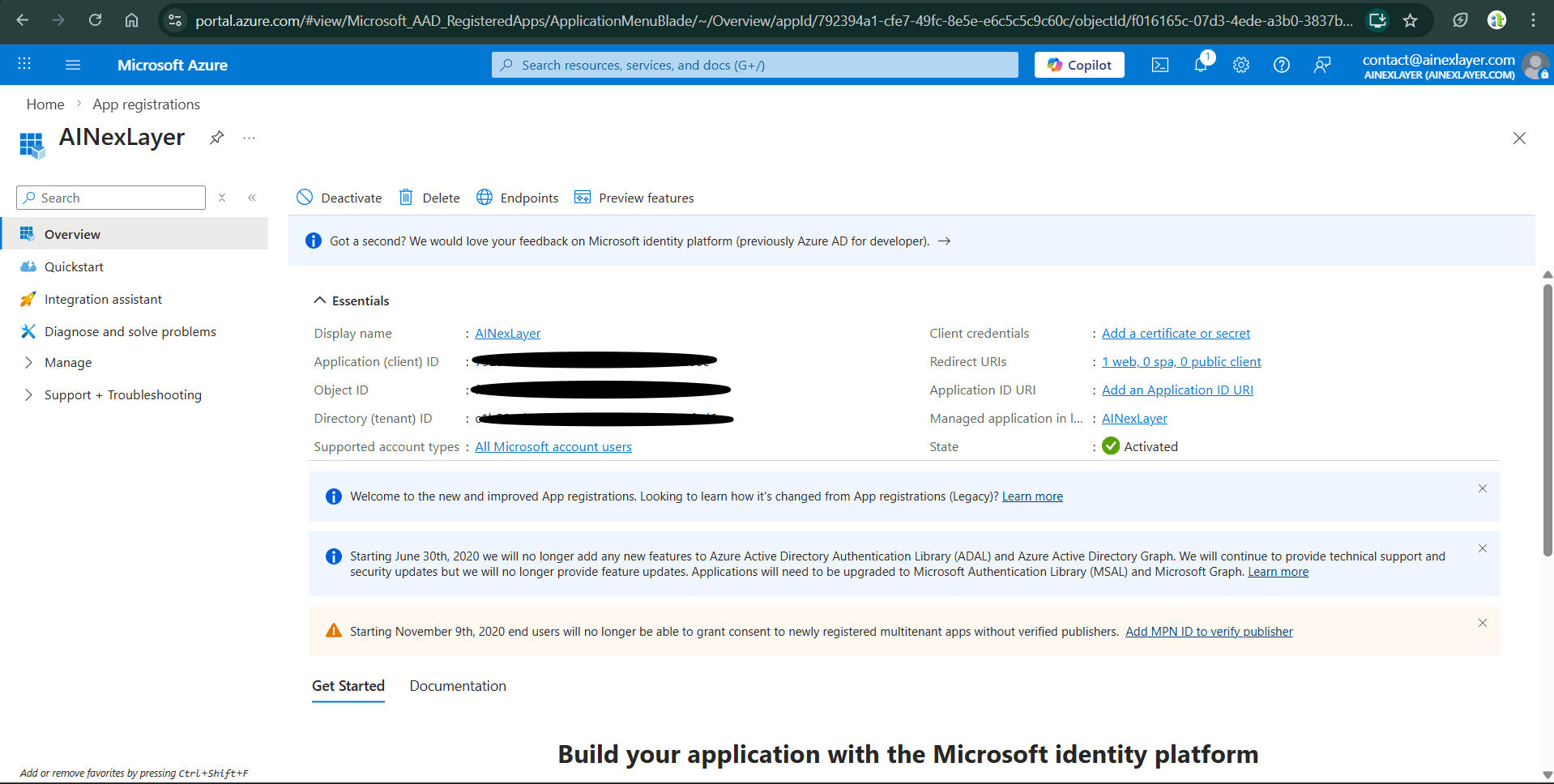

Step 4: Obtaining Application (Client) ID
After registration, you'll be taken to the app's Overview page. Here you'll find:
- Copy the Application (client) ID - this is your Client ID
- Note the Directory (tenant) ID if needed

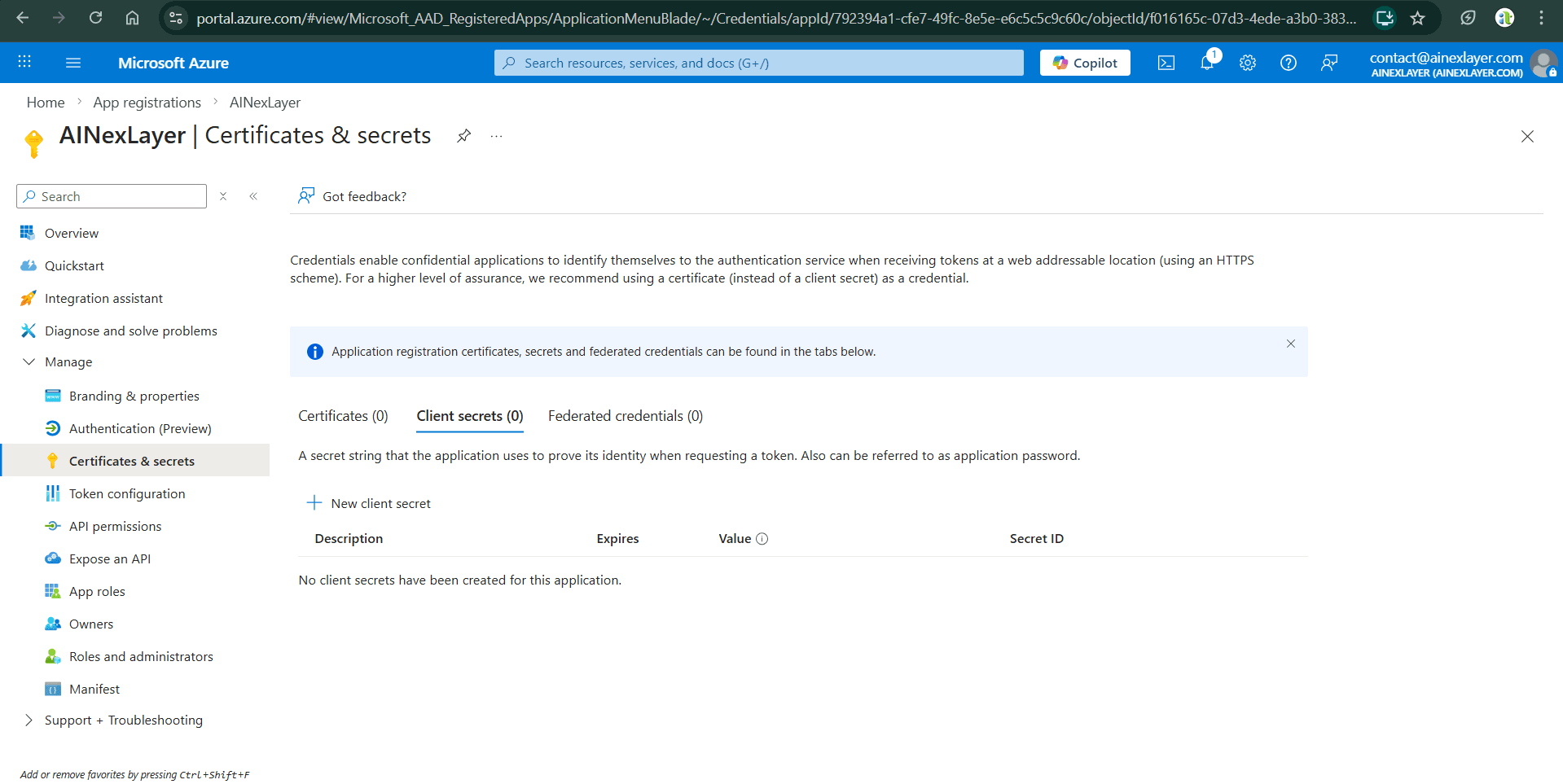

Step 5: Creating a Client Secret
- In the left sidebar under Manage, click "Certificates & secrets"
- Select the "Client secrets" tab
- Click "+ New client secret"
- Enter a description (e.g.,
AINexLayer) and select an expiration period - Click "Add"

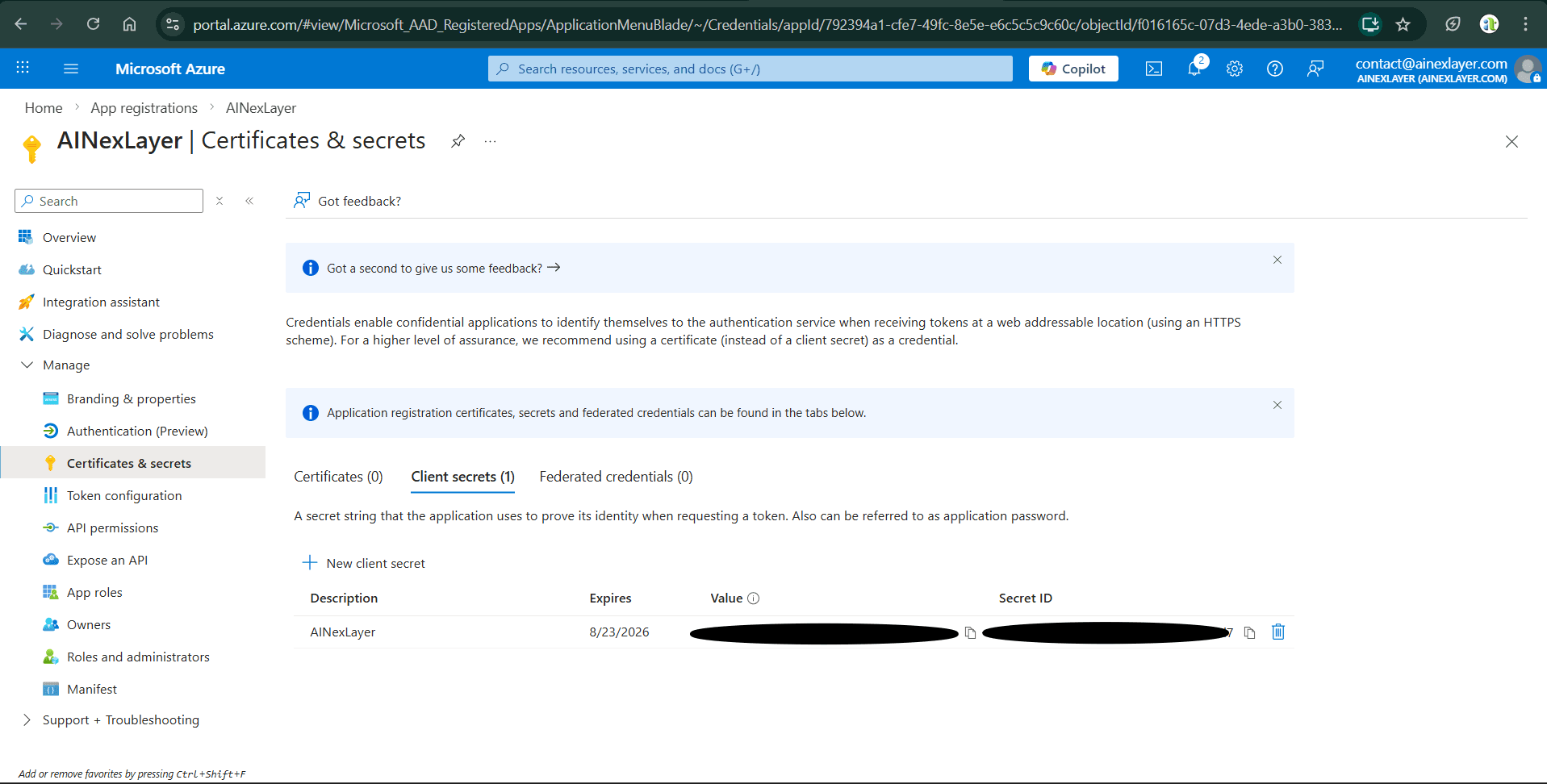

- Important: Copy the secret Value immediately - it won't be shown again!
Never share your client secret publicly or include it in code repositories.
Step 6: Configuring API Permissions
- In the left sidebar under Manage, click "API permissions"
- Click "+ Add a permission"
- Select "Microsoft Graph"
- Select "Delegated permissions"
- Add the following permissions:
| Permission | Type | Description | Admin Consent |
|---|---|---|---|
Channel.ReadBasic.All | Delegated | Read the names and descriptions of channels | No |
ChannelMessage.Read.All | Delegated | Read user channel messages | Yes |
offline_access | Delegated | Maintain access to data you have given it access to | No |
Team.ReadBasic.All | Delegated | Read the names and descriptions of teams | No |
User.Read | Delegated | Sign in and read user profile | No |
- Click "Add permissions"
The ChannelMessage.Read.All permission requires admin consent. An admin will need to click "Grant admin consent for [Directory]" for full functionality.
Deploying AINexLayer with Microsoft Teams Connector
Add the Microsoft Teams credentials to your .env file (created during Docker installation):
TEAMS_CLIENT_ID=your_microsoft_client_id
TEAMS_CLIENT_SECRET=your_microsoft_client_secret
TEAMS_REDIRECT_URI=http://localhost:8000/api/v1/auth/teams/connector/callbackThen restart the services:
docker compose up -d
